国标公制外螺纹74°外锥面参考REF.GB/T5628

Chat Online Free Message

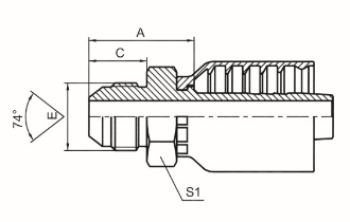

国标公制外螺纹74°外锥面参考REF.GB/T5628

Product Introduction

代号 PART NO.		螺纹E	胶管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREADE	公称内径 DN	标号DASH	A	C	S1
10711-14-04RW	--	M14X1.5	6	04	30	18	17
10711-14-06RW	--	M14X1.5	10	06	29.5	18	17
10711-16-05RW	--	M16X1.5	8	05	31	19	17
10711-16-05RW	--	M16X1.5	8	05	31	19	17
10711-18-06RW	--	M18X1.5	10	06	30.5	19	19
10711-22-08RW	--	M22X1.5	12	08	34	19.5	22
10711-24-08RW	10712-24-08RW	M24X1.5	12	08	34.5	20	24
10711-27-10RW	10712-27-10RW	M27X1.5	16	10	37.5	20.5	27
10711-30-12RW	10712-30-12RW	M30X1.5	20	12	40	23	32
10711-33-12RW	10712-33-12RW	M33X2	20	12	43	26	36
10711-39-16RW	10712-39-16RW	M39X2	25	16	49.7	27.5	41
10711-42-20RW	10712-42-20RW	M42X2	32	20	50.7	28.5	46
10711-45-20RW	10712-45-20RW	M45X2	32	20	50.7	28.5	46
