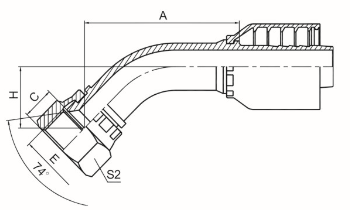

45°国标公制内螺纹74°外锥面参考REF.GB/T9065.1

Chat Online Free Message

45°国标公制内螺纹74°外锥面参考REF.GB/T9065.1

Product Introduction

代号 PART NO.		螺纹E	胶管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREADE	公称内径 DN	标号DASH	A	C	H	S2
20741-10-04RW	--	M10X1	6	04	41.7	7.5	18.1	14
20741-12-04RW	--	M12X1.5	6	04	41.7	10	18.1	17
20741-14-04TRW	--	M14X1.5	6	04	40.6	8.5	17	19
20741-14-05RW	--	M14X1.5	8	05	44.1	8.5	19.3	19
20741-14-06RW	--	M14X1.5	10	06	45.2	8.5	20	19
20741-16-04TRW	--	M16X1.5	6	04	41	8	17.4	22
20741-16-05TRW	--	M16X1.5	8	05	43.1	8	18.3	22
20741-16-06RW	--	M16X1.5	10	06	45.9	8	20.7	22
20741-18-05TRW	--	M18X1.5	8	05	43.8	8	19	22
20741-18-06RW	--	M18X1.5	10	06	46.6	10	21.4	24
20741-20-06TRW	--	M20X1.5	10	06	45.2	10	20	24
20741-20-08RW	20742-20-08RW	M20X1.5	12	08	60.4	10	24	27
20741-22-08TRW	20742-22-08TRW	M22X1.5	12	08	57.9	10	21.5	27
20741-22-10RW	20742-22-10RW	M22X1.5	16	10	70.6	10	25.3	27
20741-24-08TRW	20742-24-08TRW	M24X1.5	12	08	57.9	11	21.5	30
20741-27-08TRW	20742-27-08TRW	M27X1.5	12	08	59.3	11	22.9	32
20741-27-10TRW	20742-27-10TRW	M27X1.5	16	10	69.5	11	24.2	32
20741-30-10TRW	20742-30-10TRW	M30X1.5	16	10	69.9	11	24.6	36
20741-30-12TRW	20742-30-12TRW	M30X1.5	20	12	73.2	13	27.4	36
20741-33-12TRW	20742-33-12TRW	M33X2	20	12	72.8	13	27	41
20741-36-16TRW	20742-36-16TRW	M36X2	25	16	85	14	28.6	41
20741-39-16TRW	20742-39-16TRW	M39X2	25	16	87.2	14	30.8	46
20741-42-16TRW	20742-42-16TRW	M42X2	25	16	86.5	15	30.1	50
20741-42-20WRW	20742-42-20WRW	M42X2	32	20	97.8	15	38.7	50
20741-45-20TRW	20742-45-20TRW	M45X2	32	20	96.1	15	34.2	55
20741-52-24TRW	20742-52-24TRW	M52X2	40	24	110.8	17	38.1	60
