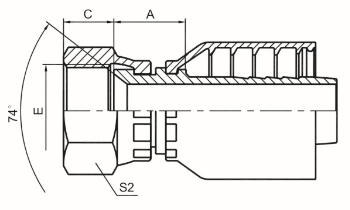

国标公制内螺纹74°外锥面参考REF.GB/T9065.1

Chat Online Free Message

国标公制内螺纹74°外锥面参考REF.GB/T9065.1

Product Introduction

代号 PART NO.		螺纹E	胶管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREADE	公称内径 DN	标号DASH	A	C	S2
20711-10-04RW	--	M10X1	6	04	16.5	7.5	14
20711-12-04RW	--	M12X1.5	6	04	16.5	10	17
20711-14-04TRW	--	M14X1.5	6	04	14.5	8.5	19
20711-14-05RW	--	M14X1.5	8	05	17	8.5	19
20711-14-06RW	--	M14X1.5	10	06	17	8.5	19
20711-16-04TRW	--	M16X1.5	6	04	15	8	22
20711-16-05TRW	--	M16X1.5	8	05	15	8	22
20711-16-06RW	--	M16X1.5	10	06	18	8	22
20711-18-05TRW	--	M18X1.5	8	05	16	8	22
20711-18-06RW	--	M18X1.5	10	06	19	10	24
20711-20-06TRW	--	M20X1.5	10	06	16	10	24
20711-20-08RW	20712-20-08RW	M20X1.5	12	08	20.5	10	27
20711-22-08TRW	20712-22-08TRW	M22X1.5	12	08	17	10	27
20711-22-10RW	20712-22-10RW	M22X1.5	16	10	21	10	27
20711-24-08TRW	20712-24-08TRW	M24X1.5	12	08	17	11	30
20711-27-08TRW	20712-27-08TRW	M27X1.5	12	08	19	11	32
20711-27-10TRW	20712-27-10TRW	M27X1.5	16	10	19.5	11	32
20711-30-10TRW	20712-30-10TRW	M30X1.5	16	10	20	11	36
20711-30-12TRW	20712-30-12TRW	M30X1.5	20	12	19	13	36
20711-33-12TRW	20712-33-12TRW	M33X2	20	12	18.5	13	41
20711-36-16TRW	20712-36-16TRW	M36X2	25	16	21.7	14	41
20711-39-16TRW	20712-39-16TRW	M39X2	25	16	24.7	14	46
20711-42-16TRW	20712-42-16TRW	M42X2	25	16	23.7	15	50
20711-42-20WRW	20712-42-20WRW	M42X2	32	20	30.2	15	50
20711-45-20TRW	20712-45-20TRW	M45X2	32	20	23.7	15	55
20711-52-24TRW	20712-52-24TRW	M52X2	40	24	24.5	17	60
