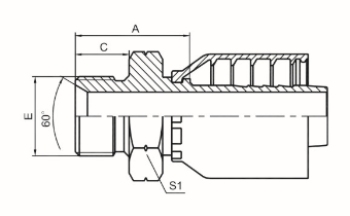

英管外螺纹60°内锥面或六角端面组合垫密封的双用接头

Chat Online Free Message

英管外螺纹60°内锥面或六角端面组合垫密封的双用接头

Product Introduction

代号 PART NO.		螺纹E	胶管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREADE	公称内径 DN	标号DASH	A	C	S1
12611A-02-04RW	--	G1/8”X28	6	04	22	10	14
12611A-04-04RW	--	G1/4”X28	6	04	24	12	19
12611A-04-05RW	--	G1/4”X28	8	05	24	12	19
12611A-04-06RW	--	G1/4”X28	10	06	23.5	12	19
12611A-06-04RW	--	G3/8”X19	6	04	27.5	13.5	22
12611A-06-05RW	--	G3/8”X19	8	05	27.5	13.5	22
12611A-06-06RW	--	G3/8”X19	10	06	27	13.5	22
12611A-06-08RW	12612A-06-08RW	G3/8”X19	12	08	28	13.5	22
12611A-08-06RW	--	G1/2”X14	10	06	31.5	16	27
12611A-08-08RW	12612A-08-08RW	G1/2”X14	12	08	32.5	16	27
12611A-08-10RW	12612A-08-10RW	G1/2”X14	10	06	31.5	16	27
12611A-08-12RW	12612A-08-12RW	G1/2”X14	20	12	32	16	27
12611A-12-08RW	12612A-12-08RW	G3/4”X14	12	08	36	18.5	32
12611A-12-10RW	12612A-12-10RW	G3/4”X14	16	10	36.5	18.5	32
12611A-12-12RW	12612A-12-12RW	G3/4”X14	20	12	35.5	18.5	32
12611A-12-16RW	12612A-12-16RW	G3/4”X14	25	16	38.7	18.5	32
12611A-16-12RW	12612A-16-12RW	G1”X11	20	12	39.5	20.5	41
12611A-16-16RW	12612A-16-16RW	G1”X11	25	16	42.7	20.5	41
12611A-20-20RW	12612A-20-20RW	G1.1/4”X11	32	20	44.7	20.5	50
12611A-24-24RW	12612A-24-24RW	G1.1/2”X11	40	24	48	23	55
12611A-32-24RW	12612A-32-24RW	G2”X11	40	24	52.5	25.5	70
12611A-32-32RW	12612A-32-32RW	G2”X11	50	32	56	25.5	70
